UL NYLON LENGTH CABLE GLAND

Category:

Material : PA 66 (Nylon), UL 94 V-2

Seal : NBR

O-Ring : EPDM

Color : Light Grey (RAL 7035), Black RAL 9005) – other color upon request

Protection Degree : IP 68

Working Temperature : -40oC to 100oC

ENQUIRE NOW

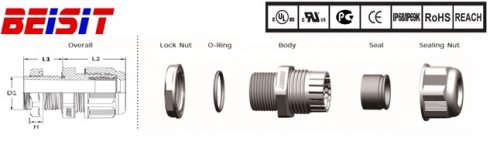

Item No. Range Dimension (mm) Packing Unit
Light Grey Black D1 L1 L2 H
II-M12L II-M12LB 3~6.5 12.0 15.0 21.0 5.0
II-M16L II-M16LB 5~10 16.0 15.0 25.0 5.0
II-M20L II-M20LB 10~14 20.0 15.0 28.0 5.7
II-M25L II-M25LB 13~18 25.0 15.0 31.0 6.0
II-M32L II-M32LB 18~25 32.0 15.0 39.0 7.0
II-M40L II-M40LB 22~32 40.0 18.0 48.0 7.0
II-M50L II-M50LB 32~38 50.0 18.0 49.0 8.5
II-M63L II-M63LB 37~44 63.0 18.0 49.0 8.0



Item No. Range Dimension (mm) Packing Unit
Light Grey Black D1 L1 L2 H
II-PG07L II-PG07LB 3~6.5 12.5 15.0 21.0 5.0
II-PG09L II-PG09LB 4~8 15.2 15.0 22.0 5.0
II-PG11L II-PG11LB 5~10 18.6 15.0 25.0 5.0
II-PG13.5L II-PG13.5LB 6~12 20.4 15.0 27.0 5.7
II-PG16L II-PG16LB 10~14 22.5 15.0 28.0 5.7
II-PG21L II-PG21LB 13~18 28.3 15.0 31.0 6.0
II-PG29L II-PG29LB 18~25 37.0 15.0 39.0 7.0
II-PG36L II-PG36LB 22~32 47.0 18.0 48.0 7.6
II-PG42L II-PG42LB 32~38 54.0 18.0 49.0 8.0
II-PG48L II-PG48LB 37~44 59.3 18.0 49.0 7.8
